WEBBING SLINGS

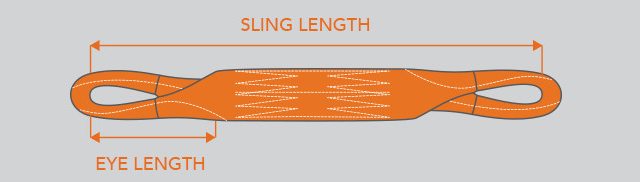

Width [mm]	Color	Eye [mm]	Standar length [m]	Capacity [kgf]
				Vertical	Choker	Basket double vertical	Basket hasta 45º	Basket hasta 60º	Direct up 45º 2 cintas	Direct up 60º 2 cintas	Choker up 45º 2 cintas	Choker up 60º 2 cintas

Use factor				1,0	0,8	2,0	1,4	1,0	1,4	1,0	1,12	0,8
30		300	1-1,5-2-2,5-3-3,5-4-4,5-5-6-8-10-12	1000	800	2000	1400	1000	1400	1000	1120	800
60		350	1-1,5-2-2,5-3-3,5-4-4,5-5-6-8-10-12	2000	1600	4000	2800	2000	2800	2000	2240	1600
90		400	1-1,5-2-2,5-3-3,5-4-4,5-5-6-8-10-12	3000	2400	6000	4200	3000	4200	3000	3360	2400
120		500	1,5-2-2,5-3-3,5-4-5-6-8-10-12	4000	3200	8000	5600	4000	5600	4000	4480	3200
150		550	2-2,5-3-3,5-4-5-6-8-10-12	5000	4000	10000	7000	5000	7000	5000	5600	4000
180		550	2-2,5-3-3,5-4-5-6-8-10-12	6000	4800	12000	8400	6000	8400	6000	6720	4800
240		650	2-2,5-3-3,5-4-5-6-8-10-12	8000	6400	16000	11200	8000	11200	8000	8960	6400
300		750	3-4-5-6-8-10-12	10000	8000	20000	14000	10000	14000	10000	11200	8000

Safety Factor 7:1. International color standard. According to NBR 15637-1/EN 1492-1 standard.
To find out more about all available products, please contact our Technical and Commercial Department.
